Velux
Traditional Domes
Dome Unit Skylights
A Classic Look with Superior Light Diffusion and Leak Protection
With superior water management and a secure thermal seal, our traditional domes help bring innovative daylighting to any space. Available in hip ridge, pyramid domes and traditional round domes, these skylights can be dry installed thanks to an innovative encapsulating one-piece inner frame.
TECHNICAL INFORMATION
downloads and details

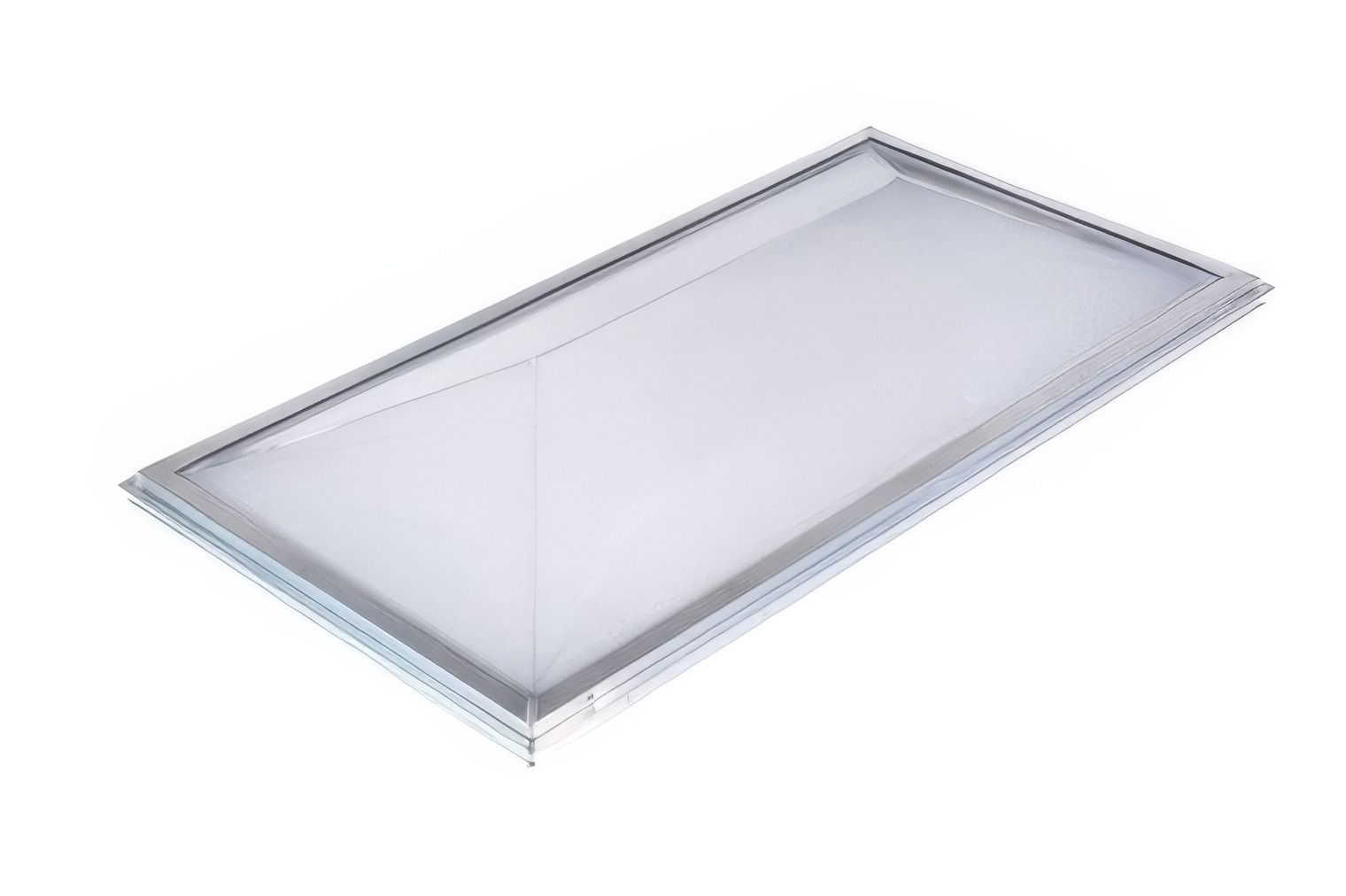

Hip Ridge and Pyramid Domes
A Classic Look for Modern Designs
The Hip Ridge and Pyramid Dome is a reliable dome skylight assembled with high-performance weather seals to prevent leaks and provide naturally diffused daylight to the space below.
Most Common Applications:
- Public education, healthcare, and office buildings
- Hotel and conference centers
- Retail and shopping malls
- Airport and railways stations
Key Benefits:
- Fail-safe proprietary wicking system evacuates condensation for superior water management
- One-piece inner frame creates superior durability while eliminating the need for corner welds that can leak
- 100% thermally broken skylight frame isolates interior surfaces from exterior temperatures, providing a secure weather seal to the curb
- Compatible with all VELUX Commercial Skylight curb and fall protection accessories
Finish Option
| Model | Number of Domes | |
|---|---|---|
| CH2 & CJ2 | Mill or Neutral Gray | Double Dome |
| CH1 & CJ1 | Mill or Neutral Gray | Single Dome |
Round Domes
Outstanding Lighting & Thermal Performance in a Versatile Range of Styles
The Round Dome is a reliable dome skylight assembled with high-performance weather seals to prevent leaks and provide naturally diffused daylight to the space below.
Most common applications:
Key Benefits:
Public education, healthcare, and office buildings
Hotels and conference centers
Retail and shopping malls
Reduces sound transmission
Will not grow mold, fungus, or mildew
Performance will not deteriorate over time
Available for curb- and deck-mount applications
Fully assembled with high performance weather seals
Energy-saving units offer the highest performance in a fixed unit plastic glazed skylight
Available in single, double, and triple dome options
Product Details
DECK MOUNT FEATURE
Curb heights available in 12″ or 16″
Heat-welded one-piece curb frame construction, sloped and chambered extruded PVC curb frame with integral condensation gutter and counterflashing downward leg
Aluminum curb with 1 1/2″ rigid insulation with HS adhesive clamping at corners
Aluminum retainer frame in multiple finish options
Product Details
Curb MOUNT FEATURE
For use on 1 1/2″ thick site-built or prefabricated curbs
No exposed fasteners
Heat-welded one-piece curb frame construction, chambered extruded PVC curb frame with integral condensation gutter and counterflashing downward leg
Aluminum retainer frame in multiple finish options
CAD Details
BIM Models
