Safescape® – T5000 Series

This smoke and fire rated door assembly is designed to coil at the top allowing the rigid bottom frame with fixed egress doors to lower when deployed.

TECHNICAL INFORMATION

downloads and details

Customer-Favourite Commercial Rollup Doors

Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.

SECURE ROLLUP GARAGE DOORS

If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:

  • Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
  • Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
  • StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
  • EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.
FIRE-RATED ROLLUP SERVICE DOORS

Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.



The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.

Once in place, the single or multiple swinging egress doors provide complying egress. Large occupant loads and wide-span openings are easily accommodated by the McKEON T5000.

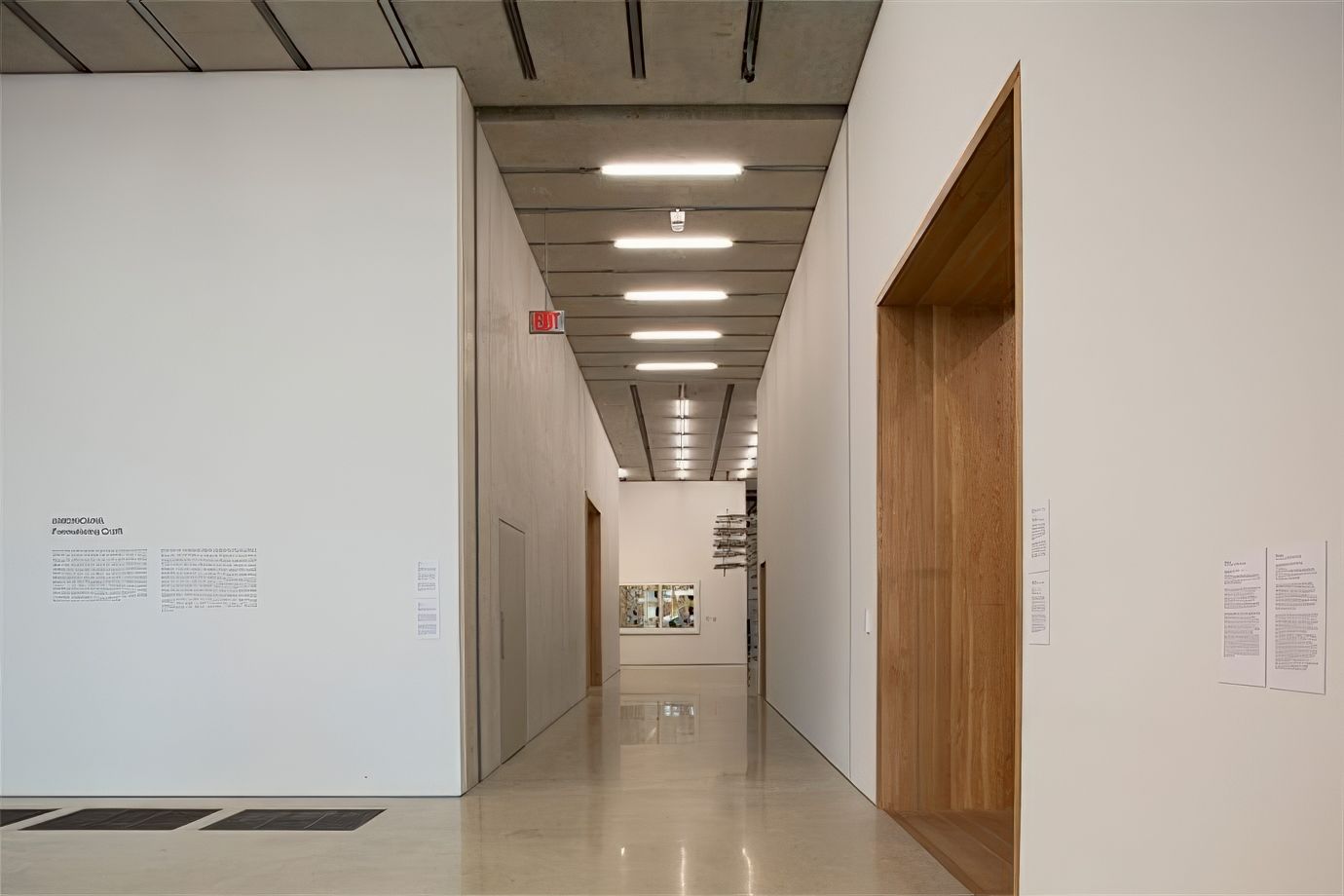

The Safescape® T5000 Series Fire Door Systems are generally used in high occupancy applications such as convention centers, casinos, arenas, sports centers and museums. Large occupant loads and wide-span openings are easily accommodated by the McKEON T5000.


Ratings

3-hour rated UL 10B*


90-minute rated assembly with a 650° F over 30 minutes Temperature Rise rating when required


Smoke & Draft labeled UL 1784


Code Compliance

CCRR-1086 – ADA compliant


Egress

Available with up to 18 complying egress swing doors


Operation

Auto-Set® automatic resetting


Fail-Safe Design – automatic self-closing mechanism does not require power operation


Size

Unlimited heights and widths to 80′; for larger sizes and custom configurations consult the factory


Finishes (metal components)

McKEON Sterling Gray


Powder coat of any color as selected


Stainless Steel — No. 4 Polish or No. 8 Mirror

Product Specifications

Specifications & Tech Data

This product is not available in Quebec. Therefore some of the following downloads may not be available in French.
