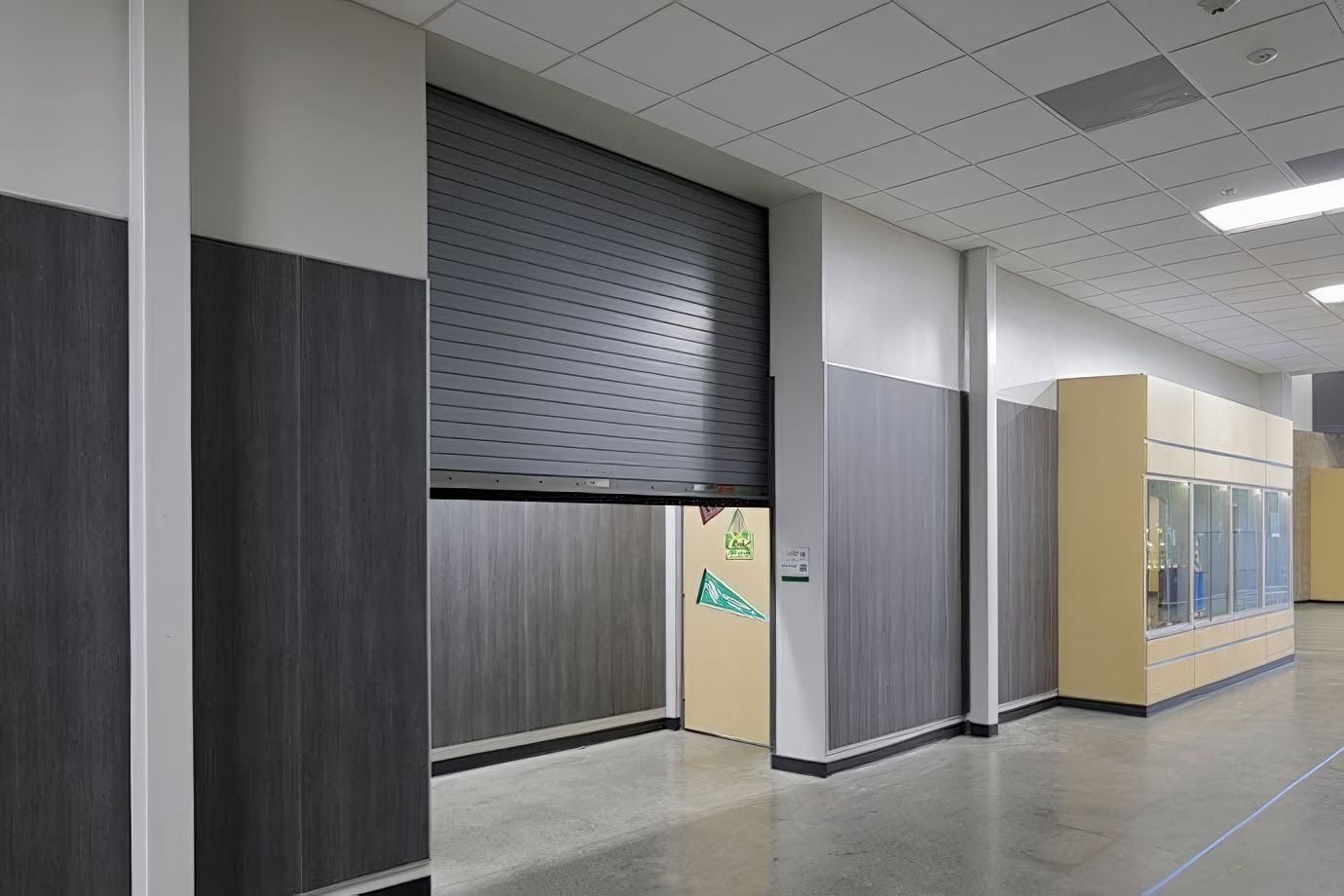

SafeSpace™ 500 Series

Customer-Favourite Commercial Rollup Doors

Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.

SECURE ROLLUP GARAGE DOORS

If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:

Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.

FIRE-RATED ROLLUP SERVICE DOORS

Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.

The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.

With SafeSpace 500, safe rooms and storm shelters can be constructed to FEMA 361 (3rd & 4th Editions) and ICC 500 (2014 & 2020) Standards without sacrificing natural light and multi-purpose use. Utilizing McKEON’s wide span engineering capabilities, this technology will not restrict either the size or the number of openings that may be protected.

The latest edition of the IBC, Section 423, Storm Shelters, requires Group E occupancies and emergency facilities within the 250 MPH tornado and hurricane zones to incorporate safe rooms and storm shelters. These areas of refuge and safety can be detached structures or rooms within buildings. Regardless, all must comply with ICC 500 which incorporates, in large part, FEMA 361.

The SafeSpace 500 rolling steel door assembly is the only wide span opening protective to comply with strict ICC 500 and FEMA 361 wind-born debris requirements. Multi-purpose spaces may be designed with large unobstructed windows and light wells yet qualify as compliant safe rooms and storm shelters.

Ratings

Tornado Resistance: +252 / -252 PSF
Tornado Impact: 100 MPH 15 lbs.
Hurricane Resistance: +201 / -201 PSF
Hurricane Impact: 100 MPH 9 – 15 lbs.

Large Missile Impact: Withstand a large missile impact in accordance with ASTM E1886 for FEMA 361 assemblies

Optional Fire and Smoke Ratings: SafeSpace 500F and 500F-IS (insulated design for thermal protection) available with up to a 3-hour UL 10B fire rating and UL 1784 smoke rating when required*

Code Compliance

ICC 500 (2014 & 2020): ICC 500/NSSA Standard for the Design & Construction of Storm Shelters

FEMA 361 (3rd & 4th Editions): FEMA Standard for the Design and Construction of Safe Rooms for Tornadoes and Hurricanes

CCRR-0500 Tornado & Hurricane Resistant Doors

FL42318 Florida Product Approval (SS500X)

Operation

Power motor operation

Size

Non-Fire Rated Assemblies

Widths 2′-10″ to 20′-3″

Heights 3′-6″ to 18′-0″

Fire Rated Assemblies

Widths 4′-4″ to 16′-4″

Heights 4′-0″ to 18′-0″

Finishes

McKEON Sterling Gray

Powder coat of any color as selected
