FireFighter® Model D200E

The D200E offers a patented and burn-tested egress feature that complies with exiting requirements of the building codes.

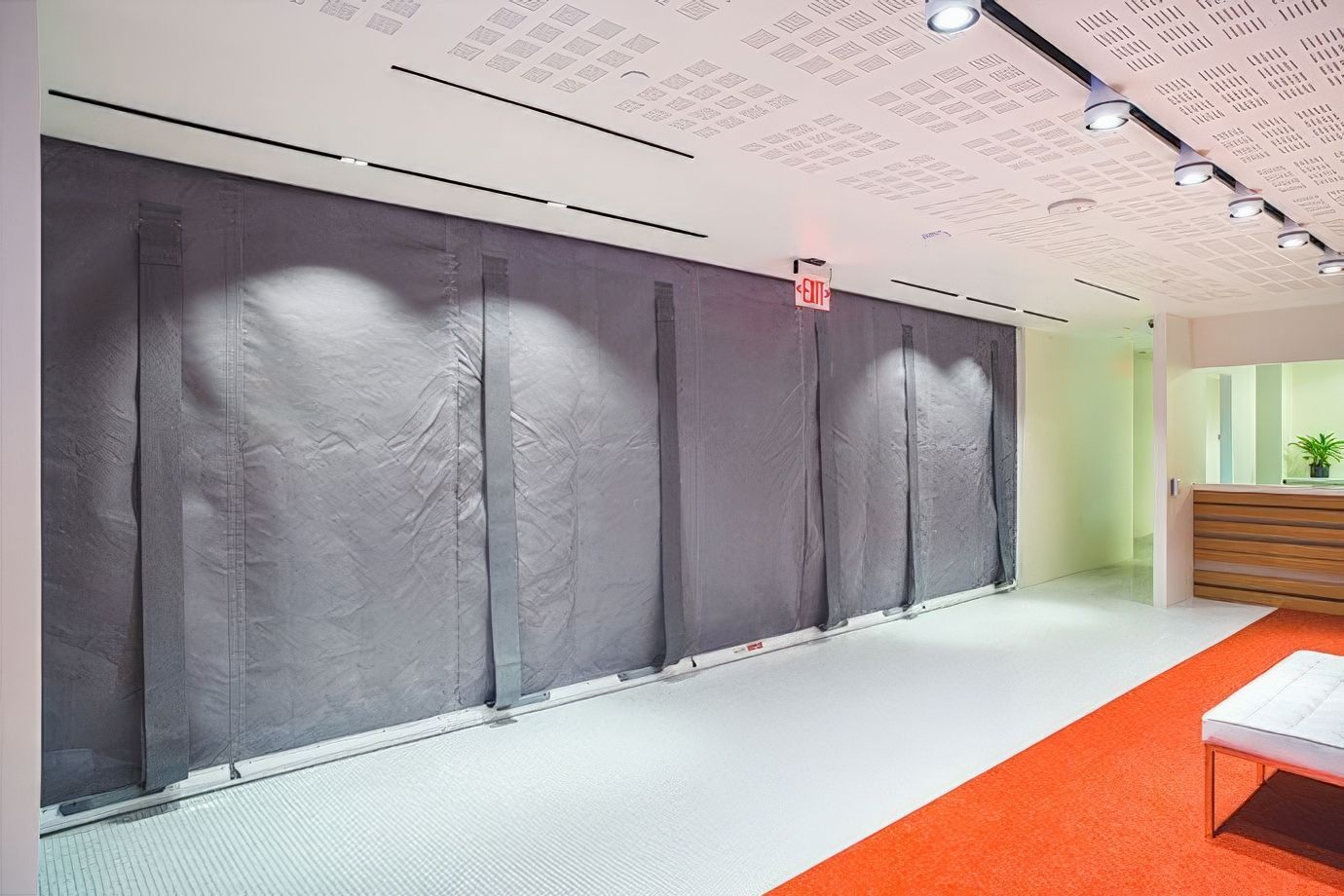

McKeon FireFighter® Model D200E Moose Jaw

TECHNICAL INFORMATION

downloads and details

Customer-Favourite Commercial Rollup Doors

Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.

SECURE ROLLUP GARAGE DOORS

If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:

  • Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
  • Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
  • StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
  • EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.
FIRE-RATED ROLLUP SERVICE DOORS

Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.



The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.

The FireFighter D200E Series is the only protective fire curtain assembly on the market with a 20-minute rating UL10B and UL10C without hose stream, up to 3-hour UL 10D rating, UL 1784 smoke and draft rating and integral conforming swing egress door(s). “The First Responder” is truly a first – going beyond where others leave off!


The D200E incorporates an egress feature that complies with the current model building codes as an opening protective placed in the required path of egress. Swinging doors as outlined in the egress sections of the model codes are the basis of design and acceptance for the FireFighter D200E fire curtain and its many applications where building occupant egress is required.


Ratings

20-minute rated UL 10B & 10C without hose stream


Up to 3-hour rated UL 10D


UL 1784 tested and listed without an artificial bottom seal


Code Compliance

Code Compliance Research Report CCRR-0455



ADA compliant


Egress

Available with up to 8 complying swing egress doors


Operation

Auto-Set® automatic resetting


Fail-Safe Design – automatic self-closing mechanism does not require power operation to self-close


FireFighter® D200E Training Demonstration Video


Size

Widths to 60′ and heights to 24′; for larger sizes and custom configurations consult the factory


Finishes (metal components only)

McKEON Sterling Gray


Powder coat of any color as selected


Stainless Steel — No. 4 Polish or No. 8 Mirror

Product Specifications

Specifications & Tech Data

This product is not available in Quebec. Therefore some of the following downloads may not be available in French.

This Product in action

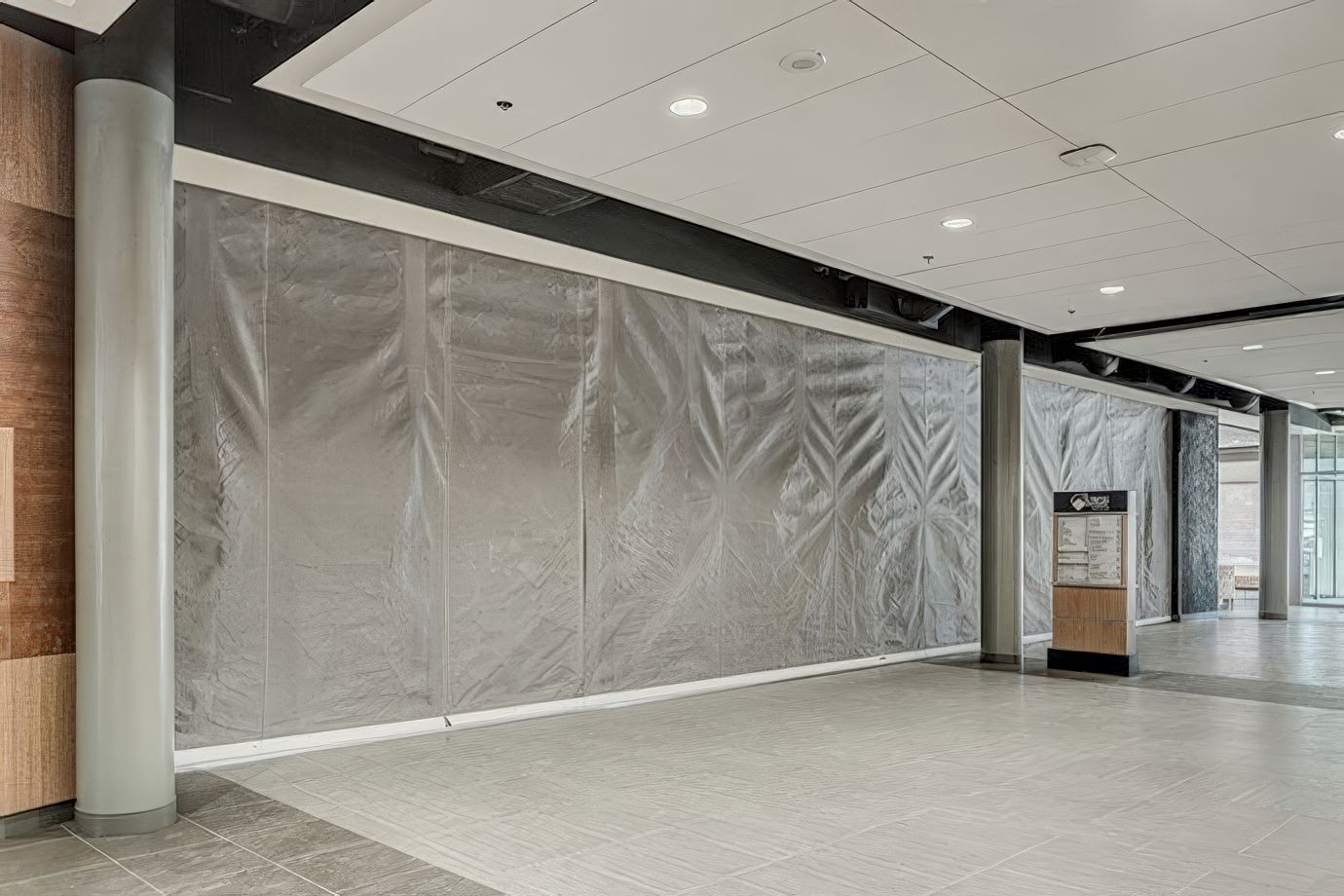

McKeon FireFighter® Model D200E Regina
McKeon FireFighter® Model D200E Medicine Hat

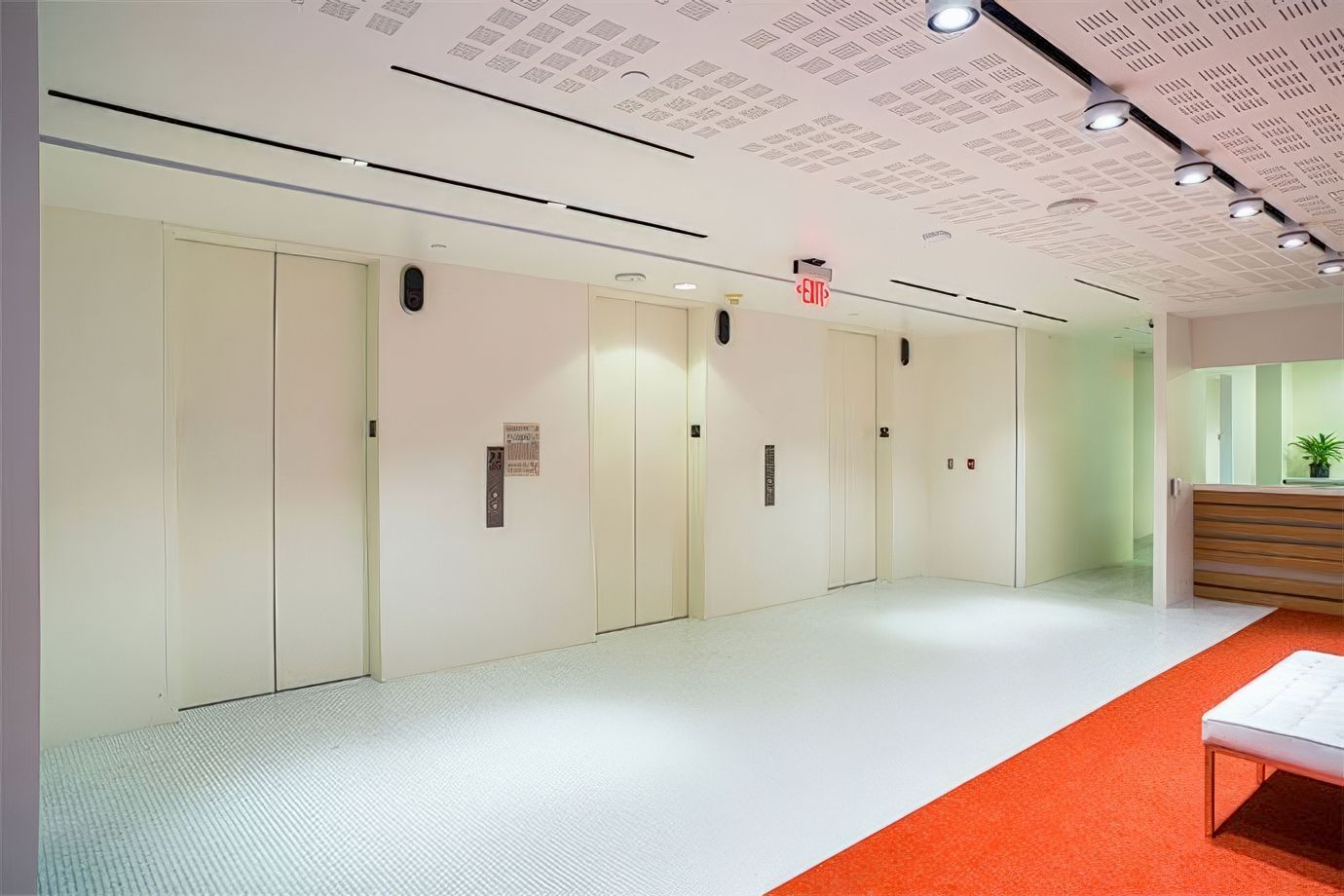

McKeon FireFighter® Model D200E Saskatoon
McKeon FireFighter® Model D200E Calgary
