FireFighter® Model D200

The D200 is an opening protective made of a flexible fire-rated fabric that is US laboratory tested and approved for unlimited widths.
McKeon FireFighter® Model D200 Edmonton

TECHNICAL INFORMATION

downloads and details

Customer-Favourite Commercial Rollup Doors

Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.

SECURE ROLLUP GARAGE DOORS

If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:

  • Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
  • Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
  • StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
  • EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.
FIRE-RATED ROLLUP SERVICE DOORS

Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.



The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.

A first in the industry, the D200 carries a 20-minute rating UL10B and UL10C without hose stream, UL 10D for up to 3 hours, and UL 1784 for smoke and draft. FireFighter D200 is approved for use in multiple applications – whenever the 20-minute UL 10B or UL 10C rating is required for a fire door or shutter used to provide protection for an opening of any size in a rated wall.



Ratings

20-minute rated UL 10B & 10C without hose stream


Up to 3-hour rated UL 10D


UL 1784 tested and listed without an artificial bottom seal


Code Compliance

Code Compliance Research Report CCRR-0455


Egress

Not available


Operation

Auto-Set® automatic resetting


Fail-Safe Design – automatic self-closing mechanism does not require power operation to self-close


FireFighter® D200 Training Demonstration Video


Size

Unlimited widths and heights


Finishes (metal components only)

McKEON Sterling Gray


Powder coat of any color as selected


Stainless steel — No. 4 Polish or No. 8 Mirror

Product Specifications

Specifications & Tech Data

This product is not available in Quebec. Therefore some of the following downloads may not be available in French.

This Product in action

McKeon FireFighter® Model D200 Alberta

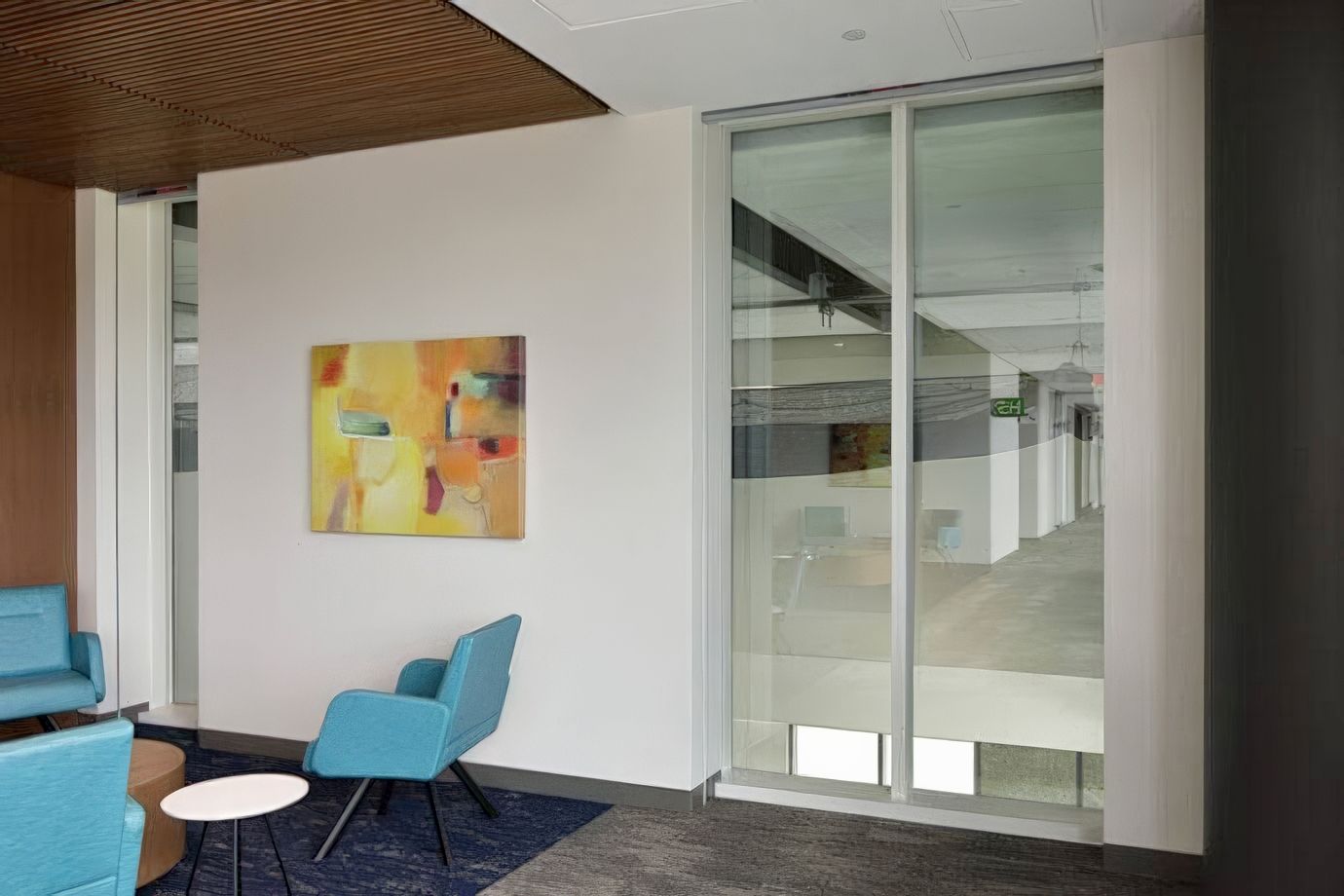

McKeon FireFighter® Model D200 Manitoba

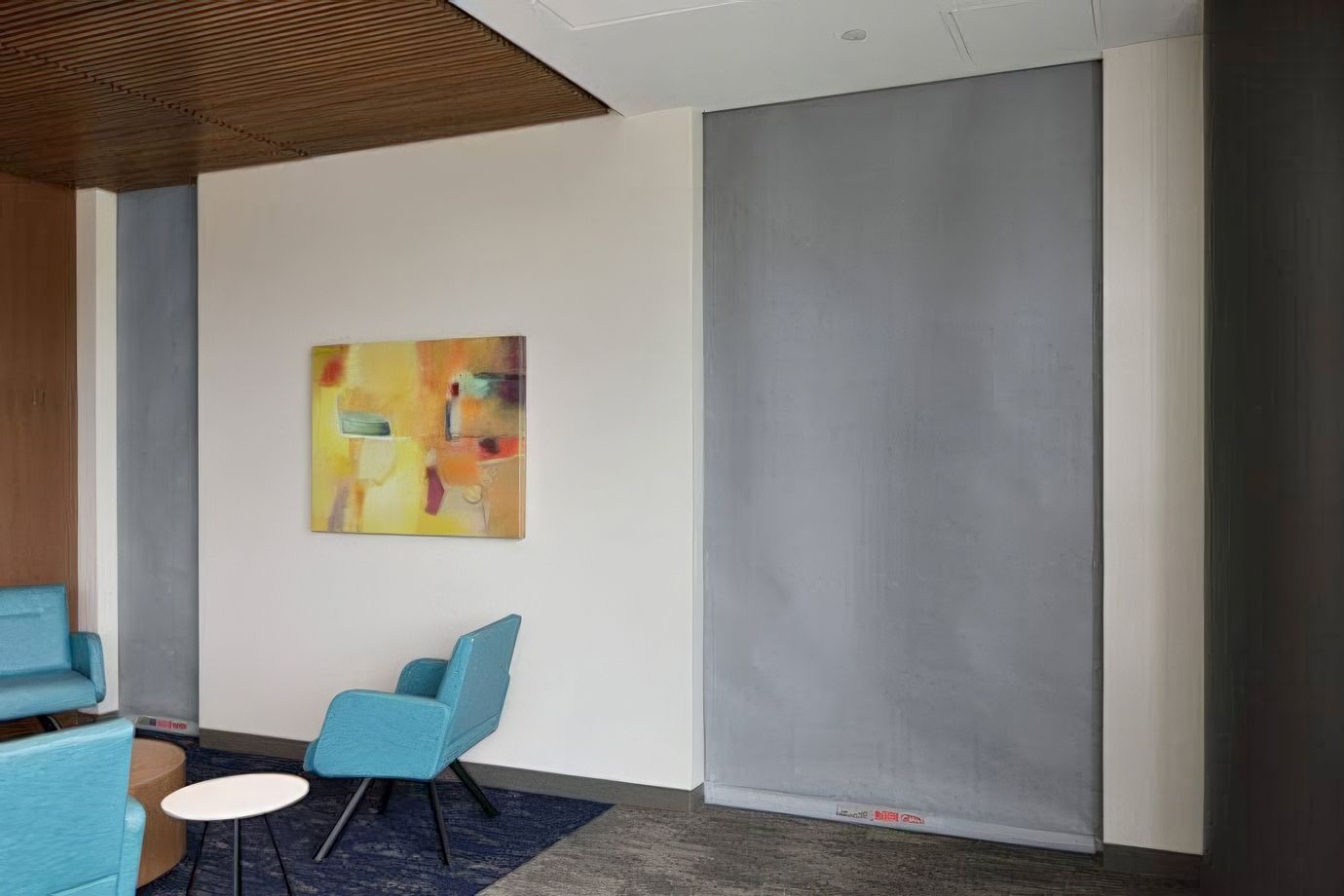

McKeon FireFighter® Model D200 Saskatchewan

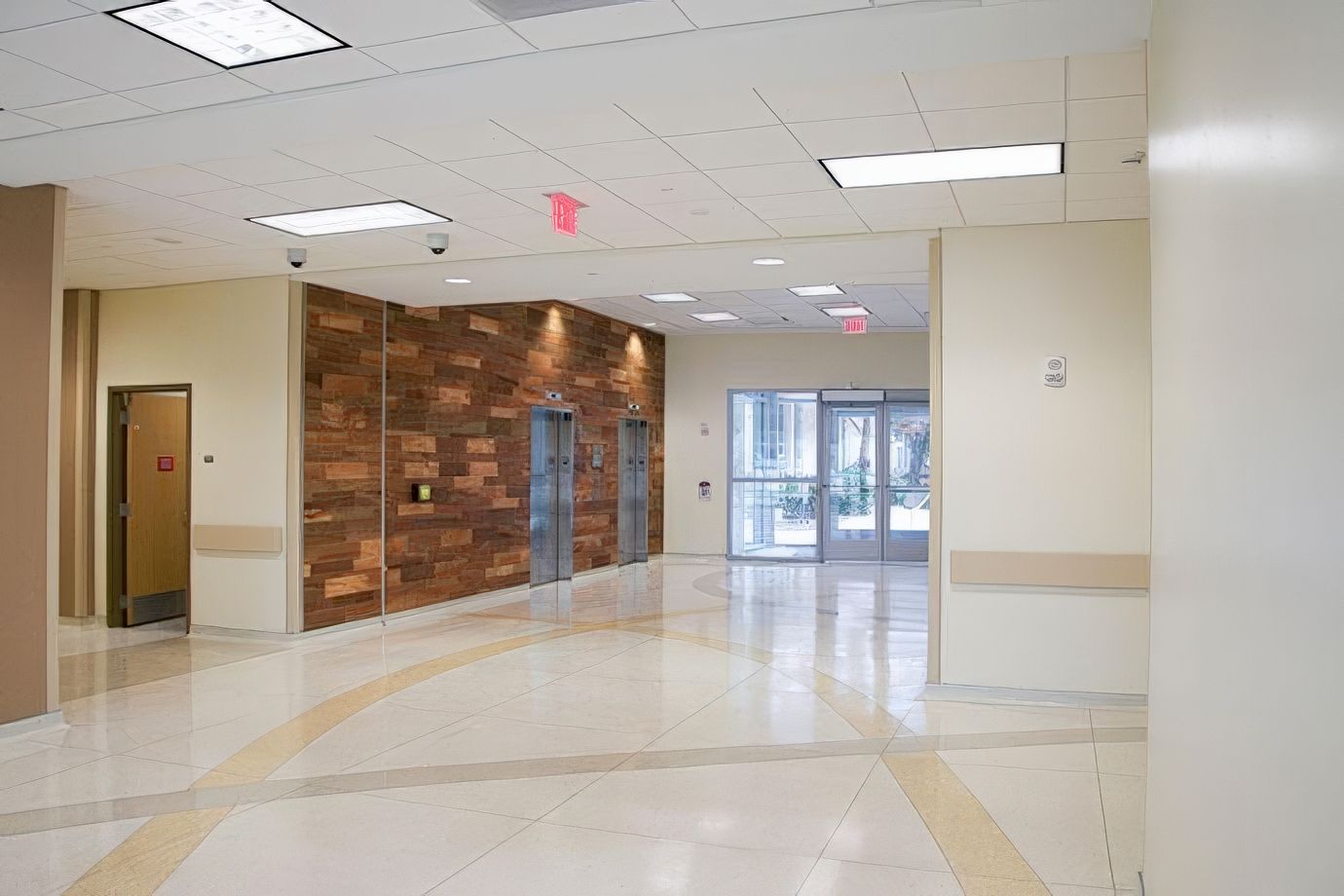

McKeon FireFighter® Model D200 British Columbia
