SmokeFighter® Model D150

This technology provides a compliant solution where the model building codes prescribe smoke only separation and egress is not required.
McKeon SmokeFighter® Model D150 Hamilton

TECHNICAL INFORMATION

downloads and details

Customer-Favourite Commercial Rollup Doors

Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.

SECURE ROLLUP GARAGE DOORS

If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:

  • Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
  • Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
  • StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
  • EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.
FIRE-RATED ROLLUP SERVICE DOORS

Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.



The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.

The Smoke curtain is fixed in place with side guides and bottom bars so smoke is handily contained when the building goes into an alarm condition.


The model building codes allow smoke rated (only) enclosures and protectives in specific applications. The SmokeFighter D150 Smoke baffle has been engineered to meet these applications where egress is not required. The assembly is designed to prevent the migration of smoke in hospital corridors, elevator lobbies and provide the separation required to create smoke compartments in suites of sleeping rooms in hospitals.


Ratings

UL 1784 tested & listed without an artificial bottom seal


Code Compliance

Code Compliance Research Report CCRR-0455


ASME A17.1 compliant vision panel when required


Egress

Not available


Operation

Auto-Set® automatic resetting


Fail-Safe Design – automatic self-closing mechanism does not require power to self-close


Size

Unlimited widths and heights


Finishes (metal components only)

McKEON Sterling Gray


Powder coat of any color as selected



Stainless Steel — No. 4 Polish or No. 8 Mirror

Product Specifications

Specifications & Tech Data

This product is not available in Quebec. Therefore some of the following downloads may not be available in French.

This Product in action

McKeon SmokeFighter® Model D150 Kingston

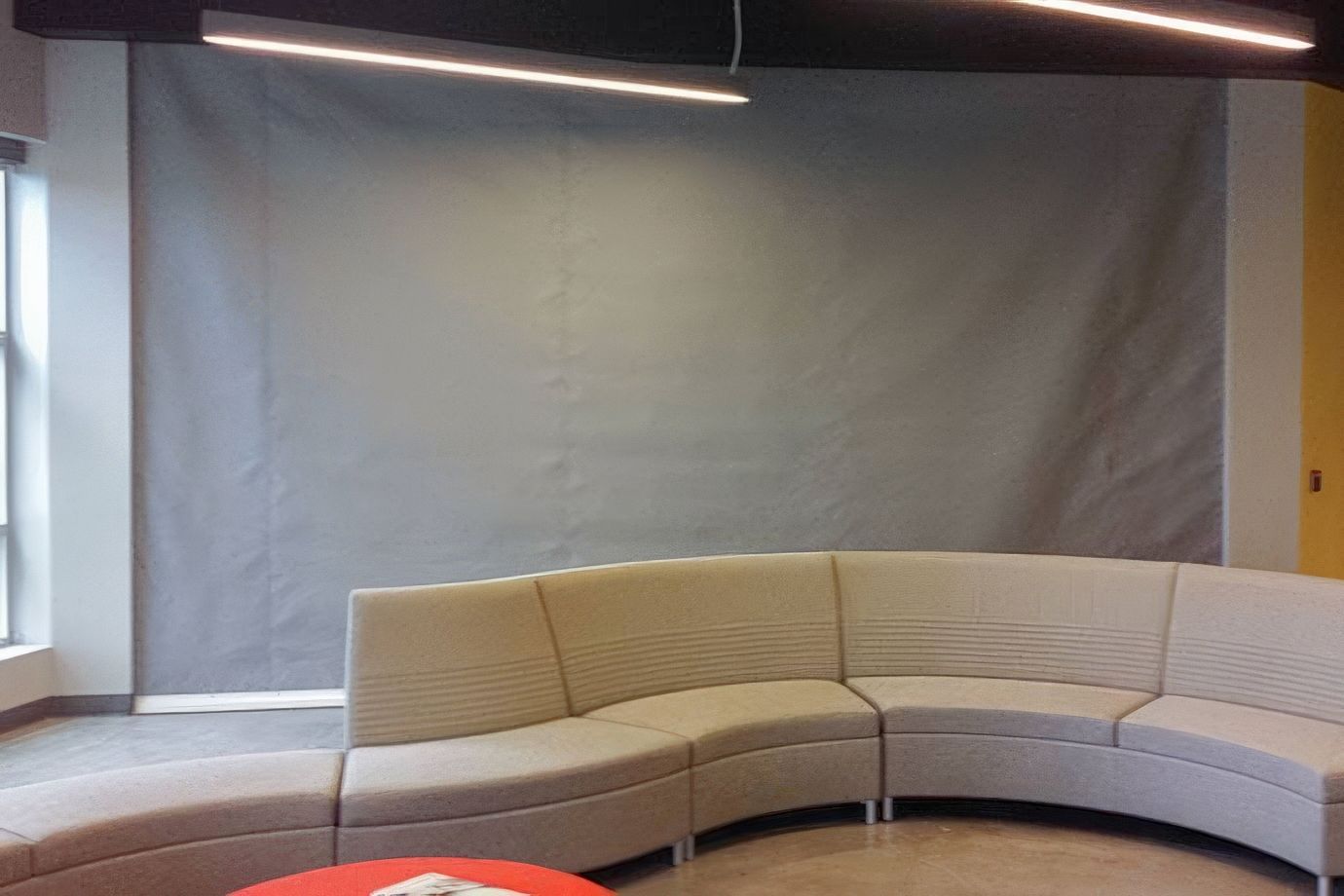

McKeon SmokeFighter® Model D150 Cornwall

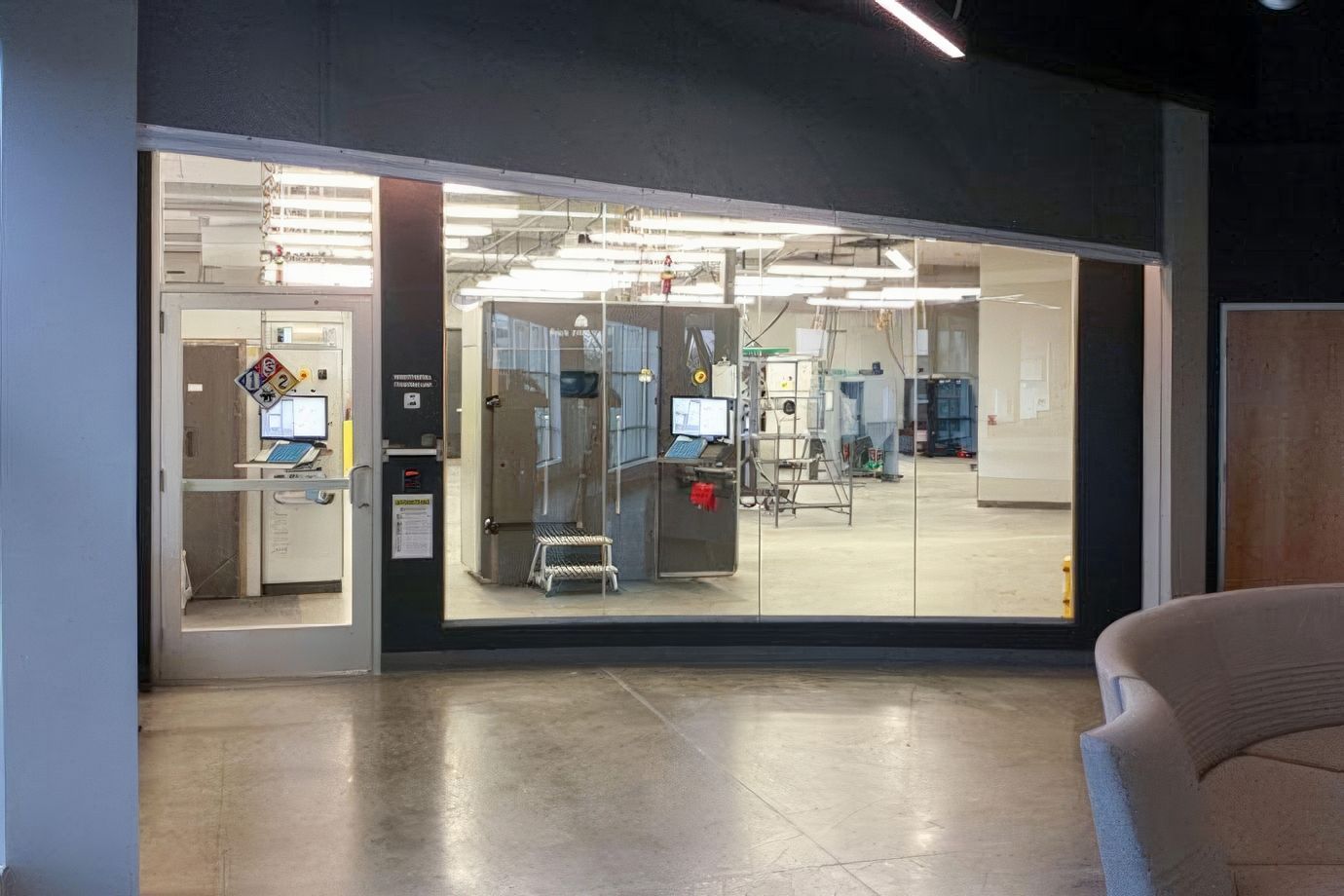

McKeon SmokeFighter® Model D150 Brampton

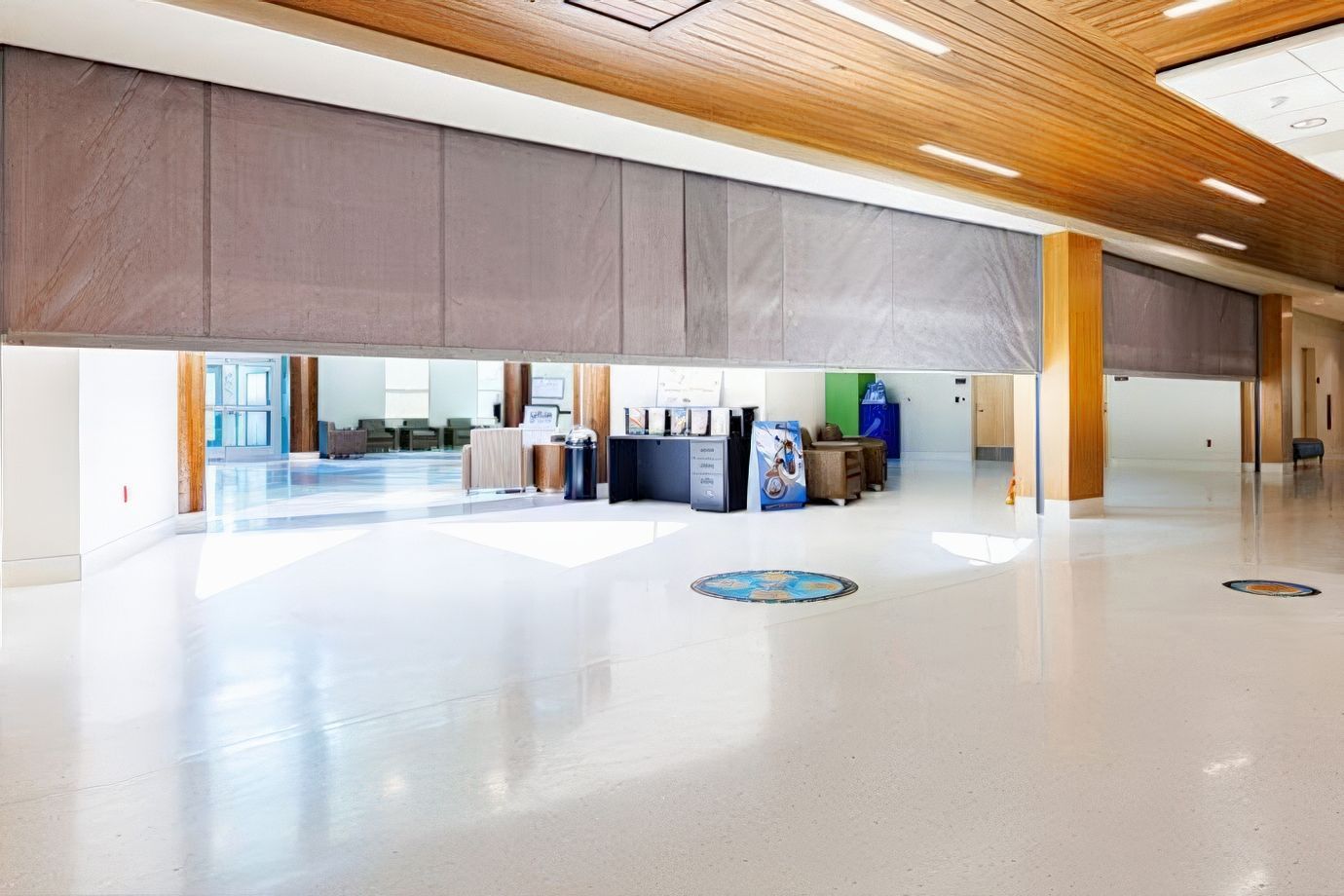

McKeon SmokeFighter® Model D150 Ottawa
