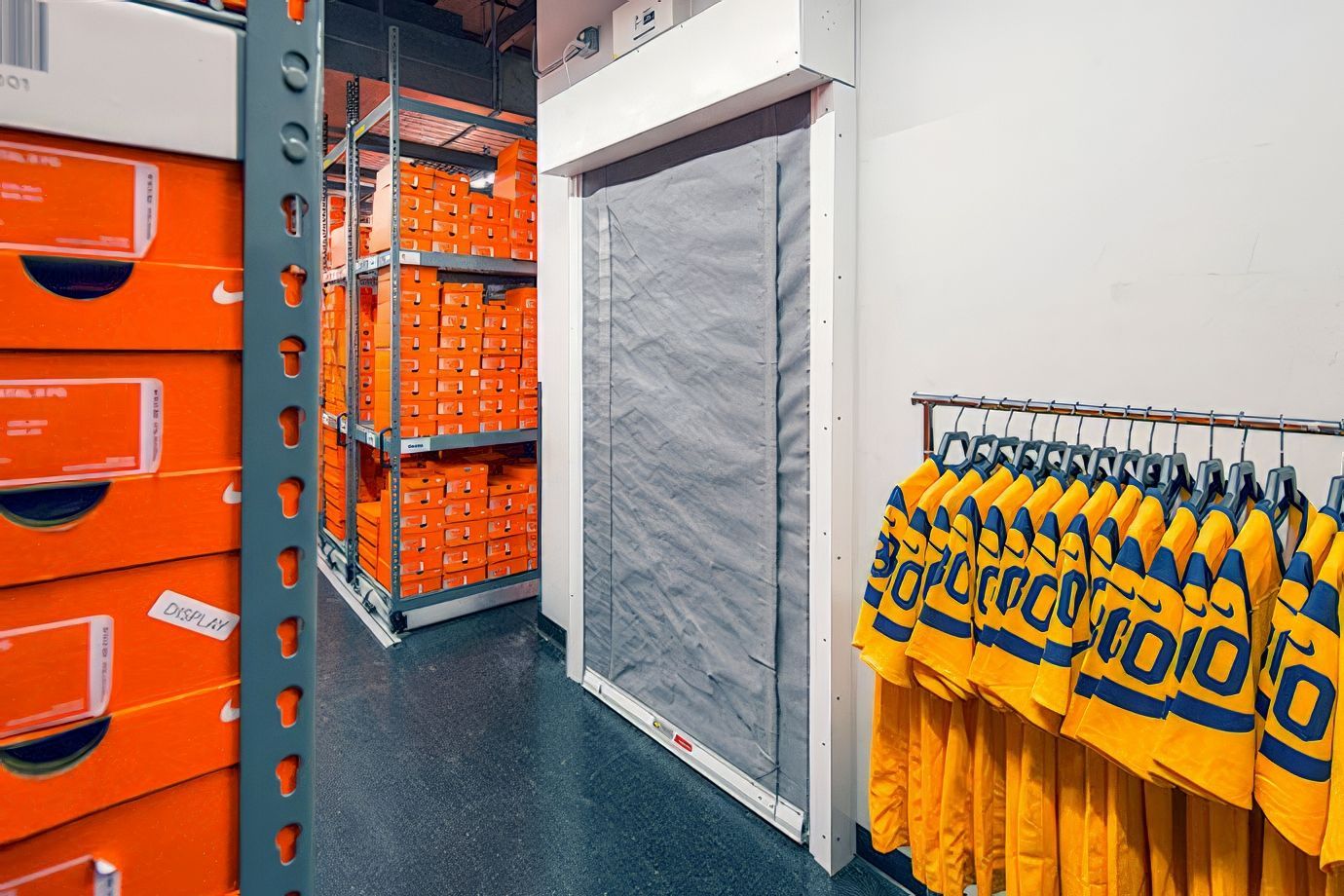

SmokeFighter® Model D100

Customer-Favourite Commercial Rollup Doors

Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.

SECURE ROLLUP GARAGE DOORS

If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:

Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.

FIRE-RATED ROLLUP SERVICE DOORS

Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.

The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.

The test criteria included side guides, however, the test parameters for draft curtains do not require any of the above certifications except to resist the passage of smoke. Thus, the McKEON D100 smoke curtain exceeds the fire and life safety requirements for draft curtains in the building code.

A draft curtain is commonly used in large spaces where smoke management is a challenge. In these type of applications draft curtains typically work in conjunction with smoke and heat vents. These vent systems are not the same as active smoke evacuation systems, rather they are designed to minimize smoke movement and provide temporary tenable environments until building occupants can evacuate during a fire or emergency. Draft curtains are a critical part of the compartmentalization effort because they prevent the migration of smoke and help to channel it towards vents that are a passive system for smoke management.

For detailed code analysis consult “Fire Door Systems, A Guide to Code Compliance.”

Ratings

Approved materials in compliance with draft curtain requirements

Code Compliance

NFPA 13 compliant

Egress

Not required

Operation

Auto-Set® automatic resetting

Fail-Safe Design – automatic self-closing mechanism does not require power operation to self-close

Size

Unlimited widths and heights to 24′

Finishes (metal components only)

McKEON Sterling Gray

Powder coat of any color as selected

Stainless Steel — No. 4 Polish or No. 8 Mirror
