Structural Skylights
The Sky is the Limit with this Extensive Line of Custom Structural Skylights
The Custom Structural Pinnacle Series offers maximum design flexibility and convenient on-site assembly. By utilizing ball and socket and pre-drilled construction, Pinnacle Series glass is always driven by your build’s unique glazing and energy needs and available in a wide array of finish options.

TECHNICAL INFORMATION
downloads and details
*Approximate span widths depending on configuration and load.

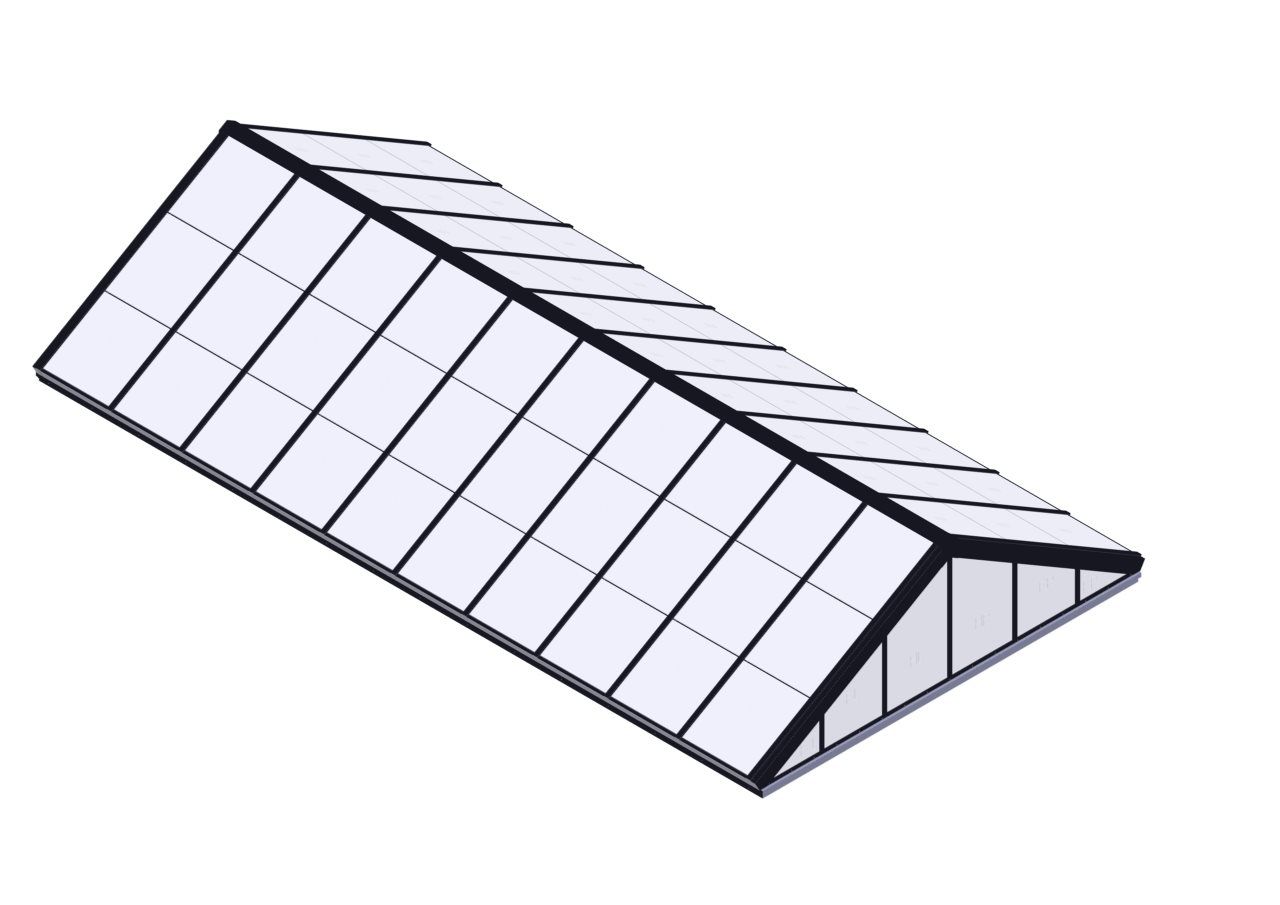

DOUBLE-PITCHED (PINNACLE)
Light-Framed, Economical Skylight Structure for Virtually Unlimited Design Possibilities
Virtually unlimited design possibilities are available with Classic Series Double-Pitch metal- framed skylight structures. This framing support spans up to* 5 feet wide with unlimited lengths.

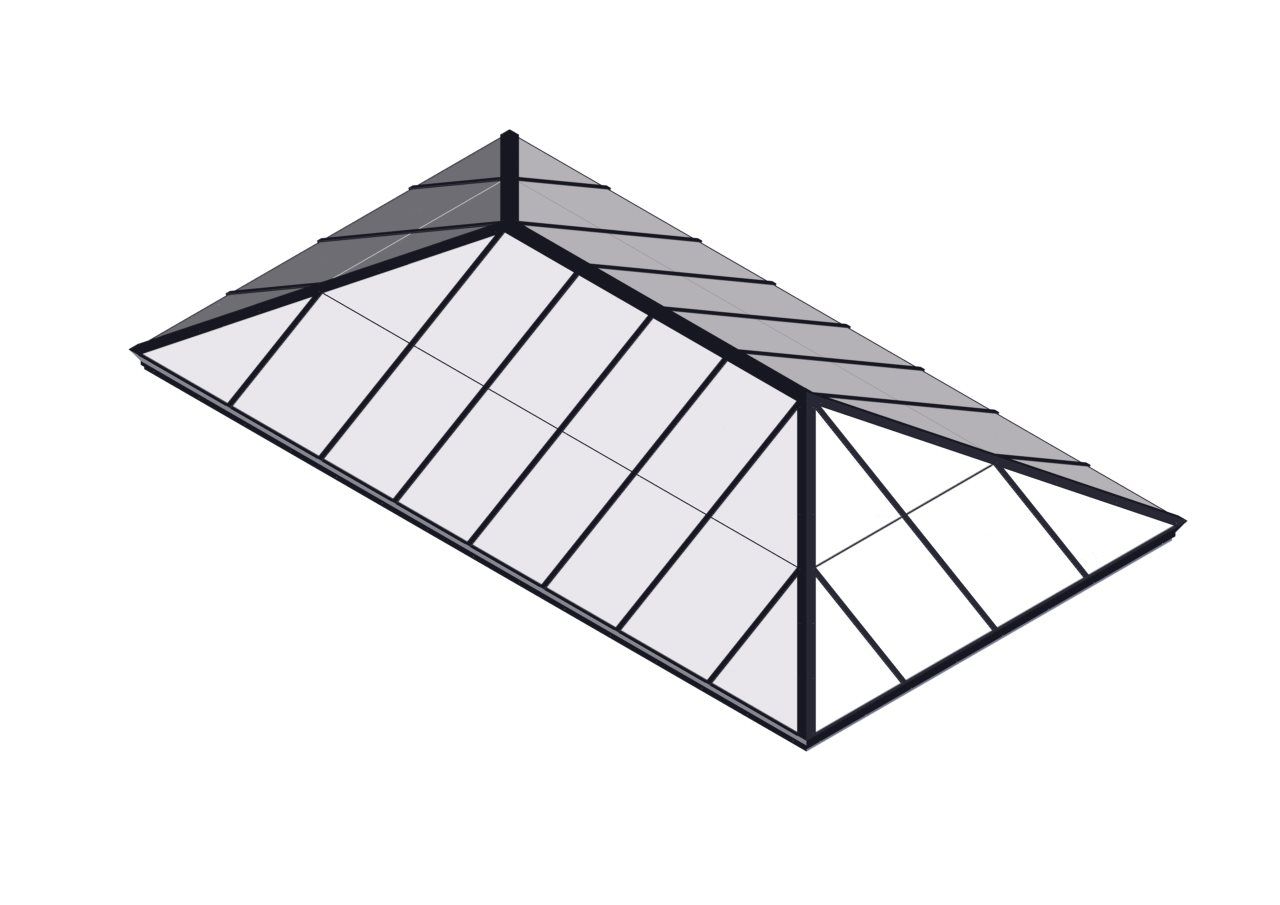

EXTENDED PYRAMID (PINNACLE)
Simple yet powerful pyramid design with width that can span up to 40′
For a fully customized configuration, there’s the Pinnacle Series extended pyramid, a metal framed skylight structure that is self-supported for spans up to* 40 feet wide.

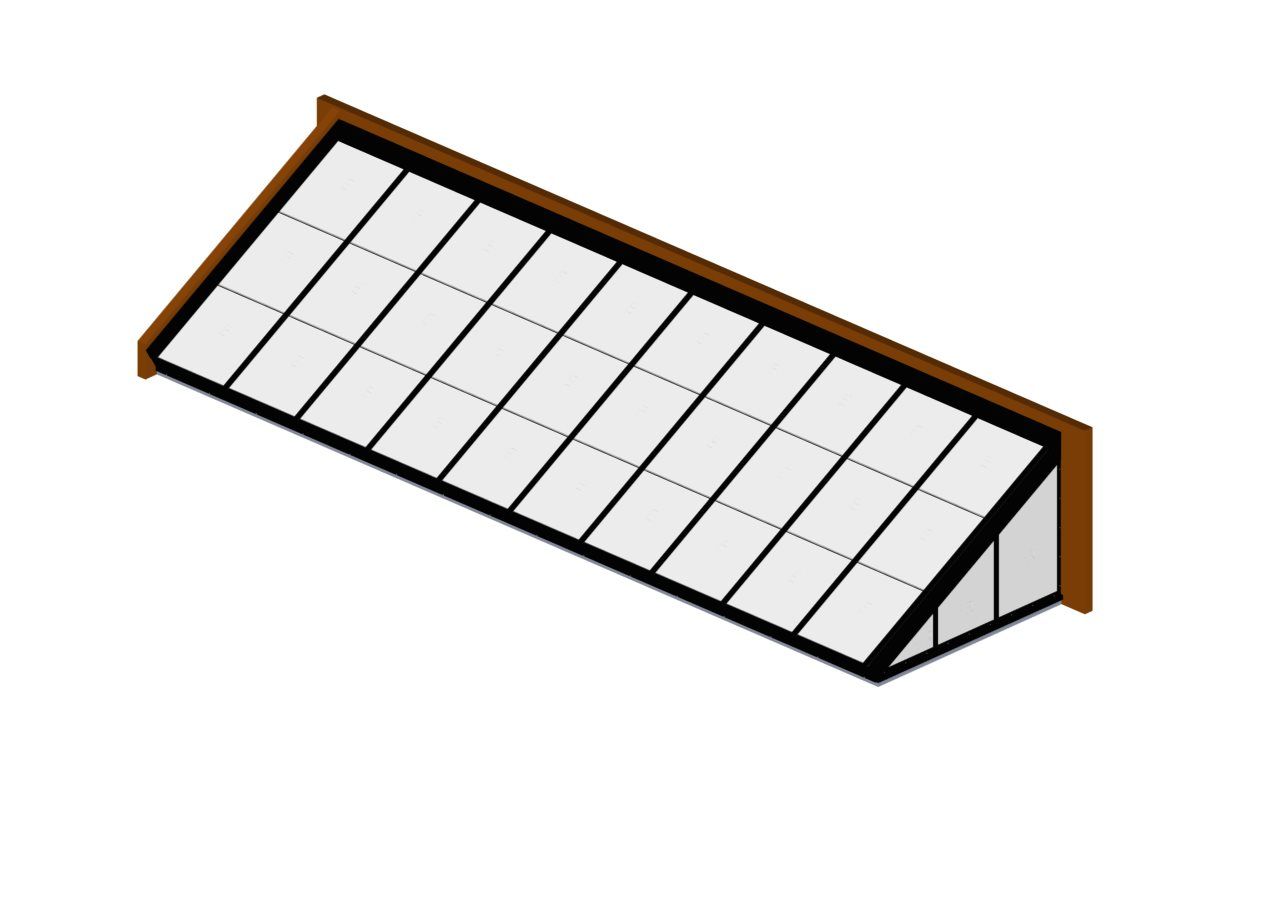

LEAN TO (PINNACLE)
For spectacular, large-scale custom structures spanning up to 22 feet’
Our Pinnacle Series lean-to metal framed skylight structures offer virtually unlimited design possibilities for a fully customized configuration and support spans up to* 22 feet wide in unlimited lengths.

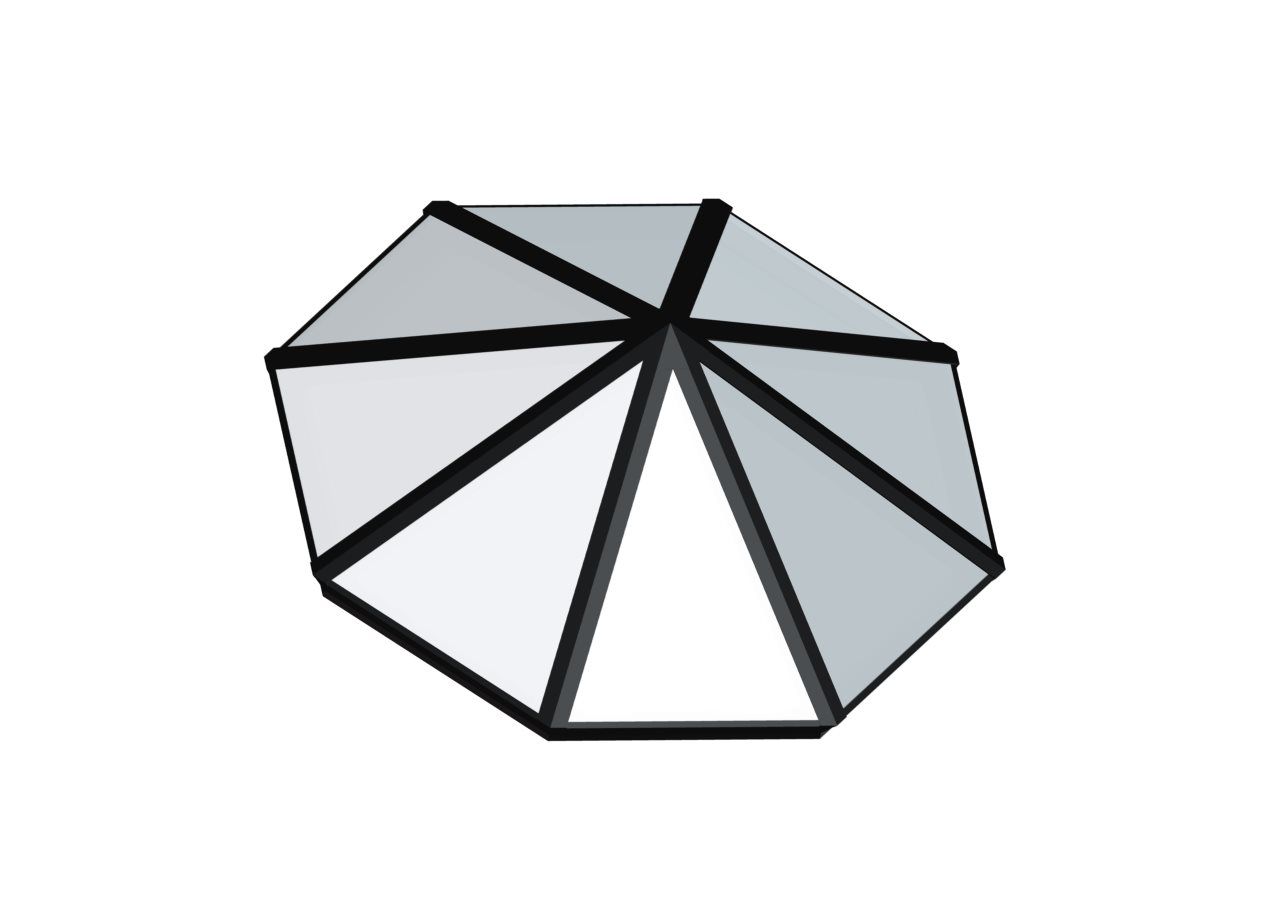

OCTAGONAL PYRAMID (PINNACLE)
Custom Configured Structural Skylights for Dramatic, Cost-Effective Designs
More of a polygonal pyramid system, the Pinnacle Series octagonal pyramid’s metal framed structure can have five or more sides and supports a completely customizable configuration with spans up to* 40 feet wide.

SINGLE PITCH (PINNACLE)
Virtually Unlimited Design Possibilities with Spans up to 22′ Wide
For a smaller alternative to the Pinnacle Series Double-Pitch System, we offer the single-pitch metal framed skylight structure that supports spans up to* 22 feet wide and unlimited lengths.

SQUARE PYRAMID (PINNACLE)
For Spectacular, Large-Scale Custom Structures Spanning up to 40 Feet
The Pinnacle Series square pyramid metal framed skylight structure offers a classic look and supports spans up to* 40 feet by 40 feet.

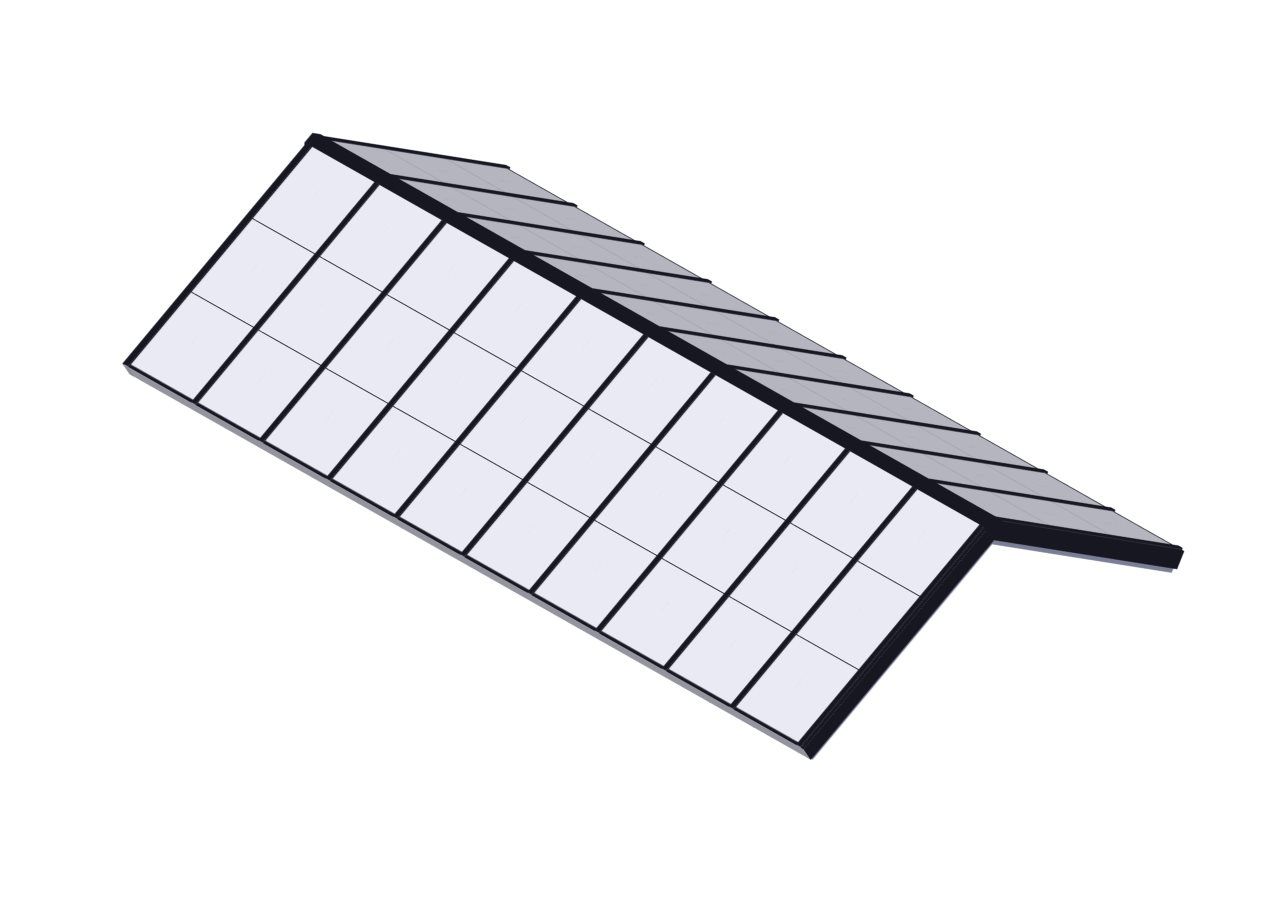

STRUCTURAL RIDGE (PINNACLE)
Spectacular, Large-Scale Custom Structures to Take Daylighting to New Heights
Spanning up to 40 feet wide, the Pinnacle Series structural ridge is a metal framed skylight structure with unlimited design possibilities.
