Bravura Architectural Products Whitby
McKeon

Auto-Set® – Model FSFD

The McKEON Auto-Set® Model FSFD is recommended in situations where fire and smoke protection is required but emergency egress is not an issue.

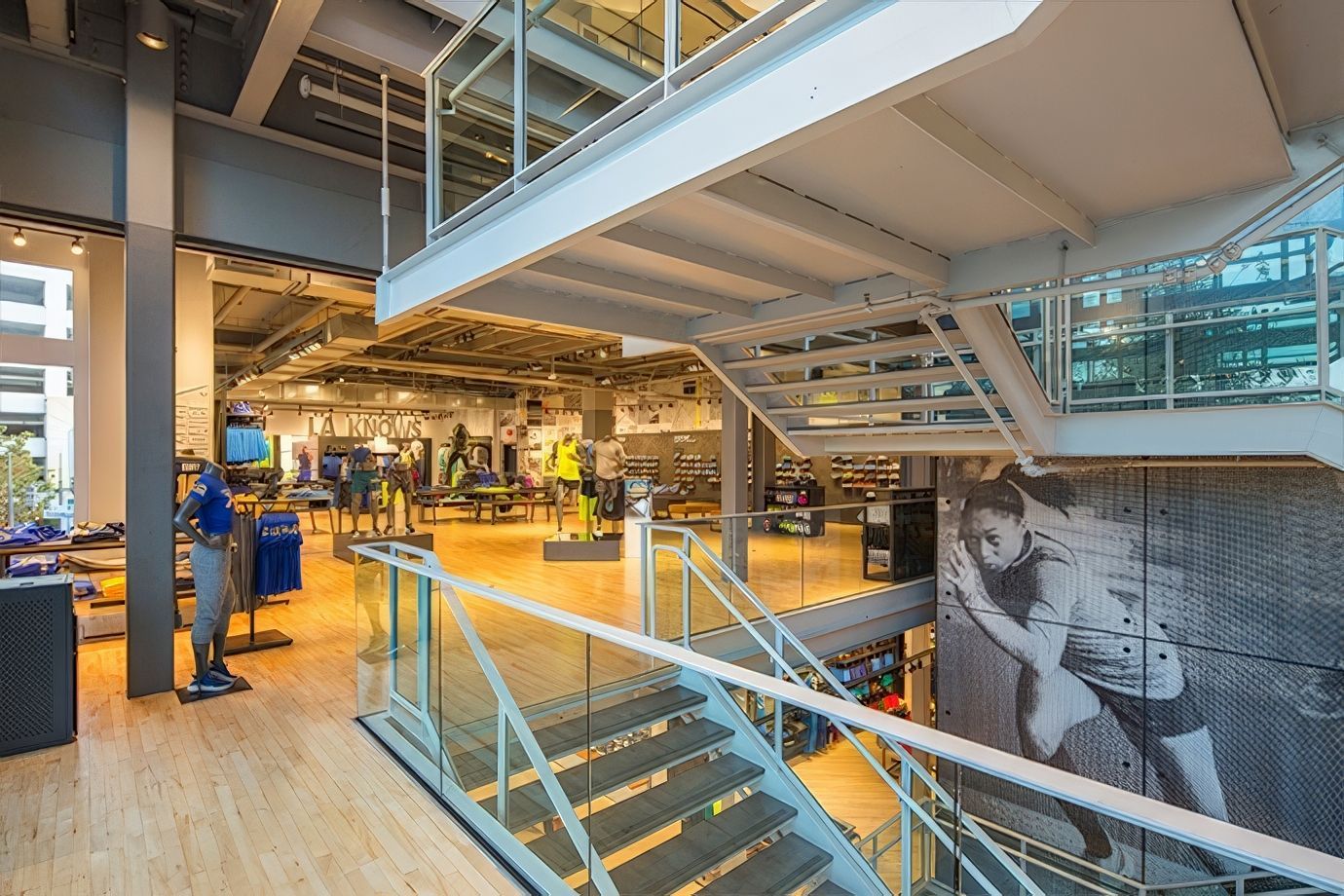

McKeon Auto-Set® – Model FSFD Halifax

TECHNICAL INFORMATION

downloads and details

Customer-Favourite Commercial Rollup Doors

Depending on your needs, we have an extensive selection of high-performance, energy-efficient and fire-rated products to choose from, including the following.

SECURE ROLLUP GARAGE DOORS

If you want top performance and high-speed operation, our high-performance security doors will have you covered. These doors are among the best overhead door investments with some of the lowest overall lifetime costs:

  • Extreme® 300 Series High-Performance Rollup Door: This springless series door is high-speed and intelligent thanks to the Apex SmartController. Designed to last 300,000 maintenance-free cycles, the Extreme 300 has it all.
  • Extreme® 1024 Long-Lasting Rollup Door: The Extreme 1024 high-performance rapid-roll door offers intelligent Apex SmartController operation and can withstand an impressive 1,000,000 maintenance-free cycles.
  • StormDefender™ Safe Room Door: This commercial rollup door is designed explicitly with security and life safety in mind, guarding you and your building against tornadoes, hurricanes and other severe weather.
  • EntryDefender™ High-Security Door: The EntryDefender™ Door meets the U.S. Department of State Standard for forced entry for a five-, 15- and 60-minute mob-style attack.
FIRE-RATED ROLLUP SERVICE DOORS

Rollup fire doors are rated structural fire barriers that help block the spreading of hazardous fire and smoke by compartmentalizing a building space and keeping the event isolated. Many buildings today mandate the placement of rolling steel fire doors as a standard safety precaution.



The Firemiser Insulated Rolling Fire Door is perfect for an exterior application and reduces sound transfer thanks to mineral wool insulation. Mineral wool insulation also minimizes thermal transfer, which can help you with temperature control inside your building. Opt for the SmokeShield™ seal package for your fire-rated door if you’re required to conform to UL 1784 or want an additional barrier to eliminate smoke migration throughout your building.

The vertically acting fire door is UL, Intertek and Factory Mutual classified for up to four hours in both masonry and drywall applications. Also available with an acoustical rating, climate control insulation and smoke and draft rating.


The non-egress Model FSFD is recommended for use in schools, hospitals, convention centers, casinos, museums, airports, hotels and industrial facilities. They are frequently used in area separations, occupancy separations and corridor separations.

  • Custom built to any height and width
  • Self-closes without electricity or battery back-up
  • Requires very little head room and side room
  • Easy to test and automatically reset


Ratings

Up to 4-hour rated UL 10B*



Smoke & Draft labeled UL 1784


Code Compliance

CCRR-1086


Egress

Not applicable


Operation

Auto-Set® automatic resetting


Fail-Safe Design – automatic self-closing mechanism does not require power operation


Based upon door size, available with hand-chain or hand-crank operation


Size

Unlimited heights and widths to 80′; for larger sizes and custom configurations consult the factory


Finishes (metal components)

McKEON Sterling Gray


Powder coat of any color as selected


Stainless Steel — No. 4 Polish or No. 8 Mirror

Product Specifications

Specifications & Tech Data

This product is not available in Quebec. Therefore some of the following downloads may not be available in French.

This Product in action

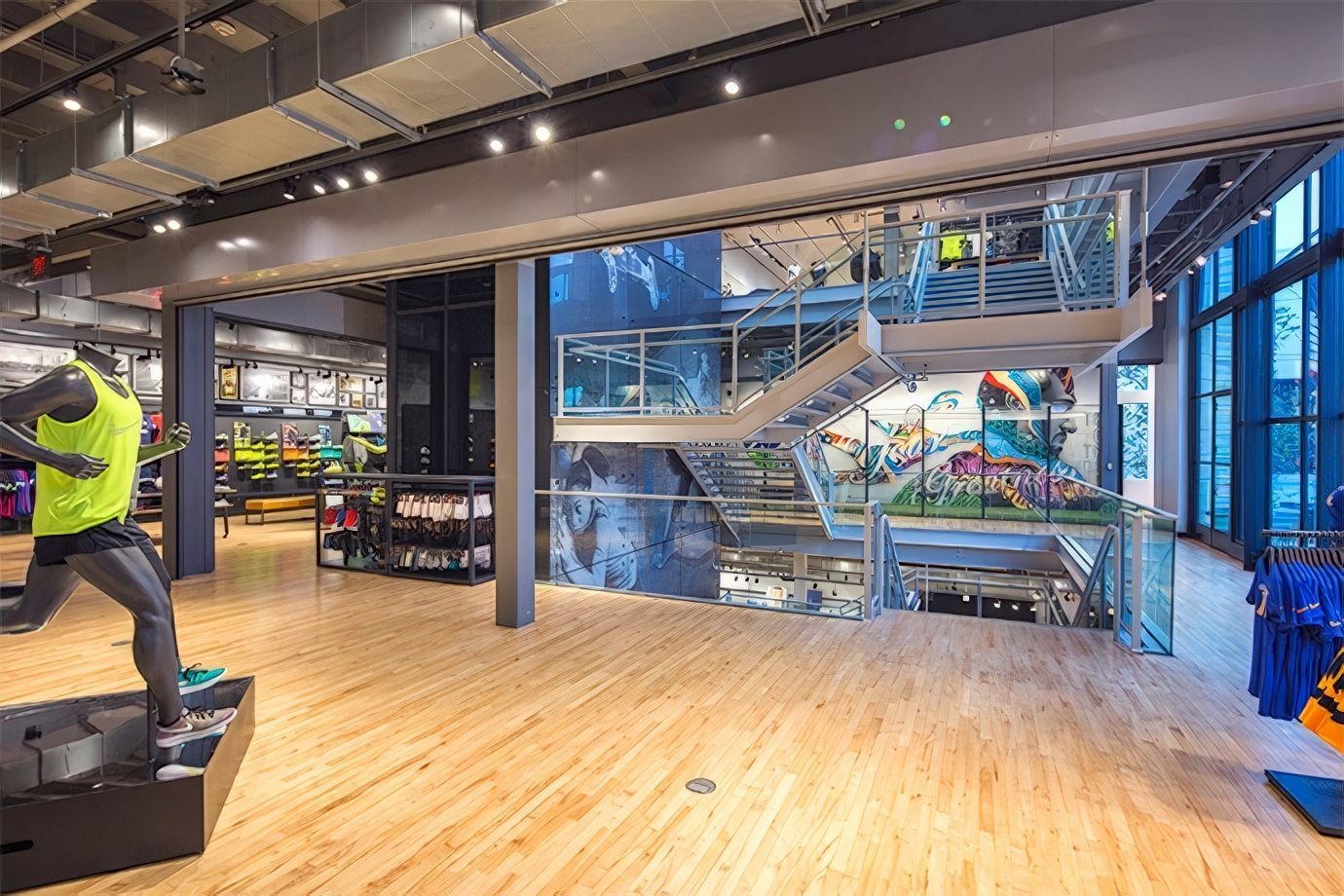

McKeon Auto-Set® – Model FSFD Montreal
McKeon Auto-Set® – Model FSFD Quebec City
McKeon Auto-Set® – Model FSFD Quebec

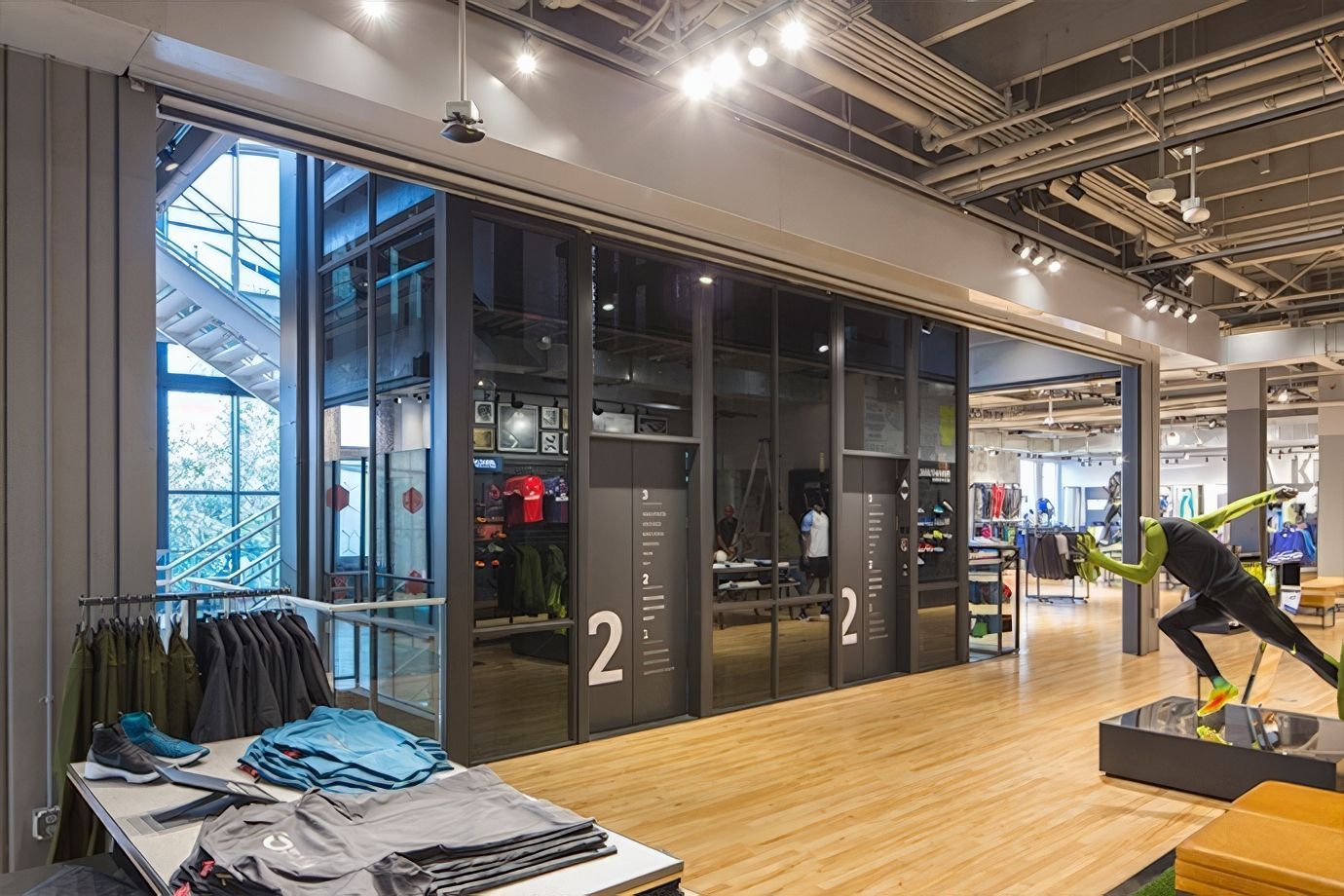

McKeon Auto-Set® – Model FSFD Sussex
